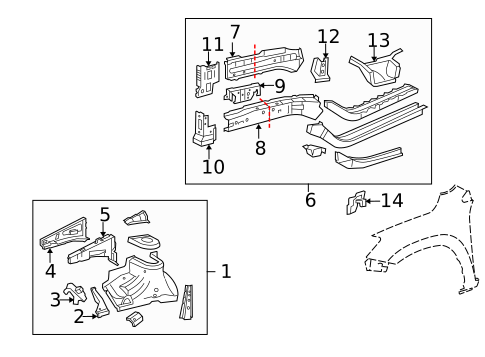

Structural Components & Rails for 2009 Toyota RAV4
No.
Part # / Description / Price
Price
1
MSRP $740.51
$666.46
1
MSRP $716.88
$645.19
2
2006-2018 Toyota RAV4 - Front Extension
Toyota
Toyota Positions: Right
Notes: PARTS: Part included in apron assembly.
Description: Apron & components. Canada buld.
MSRP $45.06
$40.55
MSRP $45.06
$40.55
2
2006-2018 Toyota RAV4 - Front Extension Toyota
Toyota Positions: Left
Notes: PARTS: Part included in apron assembly.
Description: Apron & components. Canada buld.
MSRP $43.73
$39.36
MSRP $43.73
$39.36
3
2006-2012 Toyota RAV4 - Fender Extension Panel Toyota
Toyota Positions: Right
Notes: PARTS: Part included in apron assembly.
MSRP $55.05
$49.55
MSRP $55.05
$49.55
3
2006-2012 Toyota RAV4 - Fender Extension Panel Toyota
Toyota Positions: Left
Notes: PARTS: Part included in apron assembly.
MSRP $55.87
$50.28
MSRP $55.87
$50.28
4
2006-2018 Toyota RAV4 - Upper Rail Toyota
Toyota Positions: Right
Notes: PARTS: Part included in apron assembly.
Description: Outer.
MSRP $89.97
$80.97
MSRP $89.97
$80.97
4
2006-2018 Toyota RAV4 - Upper Rail Toyota
Toyota Positions: Left
Notes: PARTS: Part included in apron assembly.
Description: Outer.
MSRP $89.97
$80.97
MSRP $89.97
$80.97
5
2006-2012 Toyota RAV4 - Upper Rail Toyota
Toyota Positions: Right
Notes: PARTS: Part included in apron assembly.
Description: Inner.
MSRP $174.46
$157.01
MSRP $174.46
$157.01
5
2006-2012 Toyota RAV4 - Upper Rail Toyota
Toyota Positions: Left
Notes: PARTS: Part included in apron assembly.
Description: Inner.
MSRP $173.14
$155.83
MSRP $173.14
$155.83
6
Lower Rail Assembly Toyota
Toyota Positions: Left
Description: Canada built japan built to 1/2014 rails & components. Sidemember assy.
MSRP $2,190.29
$1,971.26
MSRP $2,190.29
$1,971.26
6
Frame Side Member Assembly Toyota
Toyota Positions: Right
Description: Canada built japan built to 1/2014 rails & components. Sidemember assy.
MSRP $1,940.12
$1,746.11
MSRP $1,940.12
$1,746.11
7
2006-2018 Toyota Outer Rail Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Rails & components, japan built from 1/2014. Canada built, japan built to 1/2014, canada built.
MSRP $197.26
$177.53
MSRP $197.26
$177.53
7
2006-2018 Toyota Outer Rail Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Rail & components. Canada built, japan built to 1/2014, japan built.
MSRP $240.51
$216.46
MSRP $240.51
$216.46
8
2008-2018 Toyota Side Member Rail Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Rail & components. Canada built, japan built to 1/2014, japan built.
MSRP $331.00
$297.90
MSRP $331.00
$297.90
8
2006-2018 Toyota Inner Rail Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Rail & components. Canada built, japan built to 1/2014, japan built.
MSRP $318.52
$286.67
MSRP $318.52
$286.67
9
2006-2018 Toyota Frame Side Member Reinforcement Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components.
MSRP $89.48
$80.53
MSRP $89.48
$80.53
9
2006-2018 Toyota Frame Side Member Reinforcement Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components. Japan built from 1/2014 rails & components.
MSRP $95.12
$85.61
MSRP $95.12
$85.61
10
2006-2018 Toyota RAV4 - Plate Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components.
MSRP $169.32
$152.39
MSRP $169.32
$152.39
10
2006-2018 Toyota RAV4 - Plate Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components.
MSRP $140.87
$126.78
MSRP $140.87
$126.78
11
2006-2018 Toyota RAV4 - Rail Extension Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Rails & components, japan built from 1/2014. Canada built.
MSRP $103.44
$93.10
MSRP $103.44
$93.10
11
2006-2015 Toyota RAV4 - Rail Extension Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Canada built.
MSRP $113.09
$101.78
MSRP $113.09
$101.78
12
2006-2018 Toyota RAV4 - Fender Gusset Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components.
MSRP $53.21
$47.89
MSRP $53.21
$47.89
12
2006-2018 Toyota RAV4 - Fender Gusset Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Rails & components, japan built from 1/2014. Canada built japan built to 1/2014 rails & components.
MSRP $52.04
$46.84
MSRP $52.04
$46.84
13
2006-2018 Toyota RAV4 - Torque Box Toyota
Toyota Positions: Right
Notes: PARTS: Part included in rail assembly.
Description: Rails & components, japan built from 1/2014. Canada built japan built to 1/2014 rails & components.
MSRP $132.56
$119.30
MSRP $132.56
$119.30
13
2006-2015 Toyota RAV4 - Torque Box Toyota
Toyota Positions: Left
Notes: PARTS: Part included in rail assembly.
Description: Canada built japan built to 1/2014 rails & components.
MSRP $136.21
$122.59
MSRP $136.21
$122.59
14
2006-2018 Toyota RAV4 - Engine Mount Bracket Toyota
Toyota Positions: Left
Notes: PARTS: Part included in left rail assembly.
Description: Engine mounting rear.
MSRP $68.18
$61.36
MSRP $68.18
$61.36
14
2006-2018 Toyota RAV4 - Engine Mount Bracket Toyota
Toyota Positions: Left
Notes: PARTS: Part included in left rail assembly.
Description: Engine mounting front.
MSRP $60.19
$54.17
MSRP $60.19
$54.17
